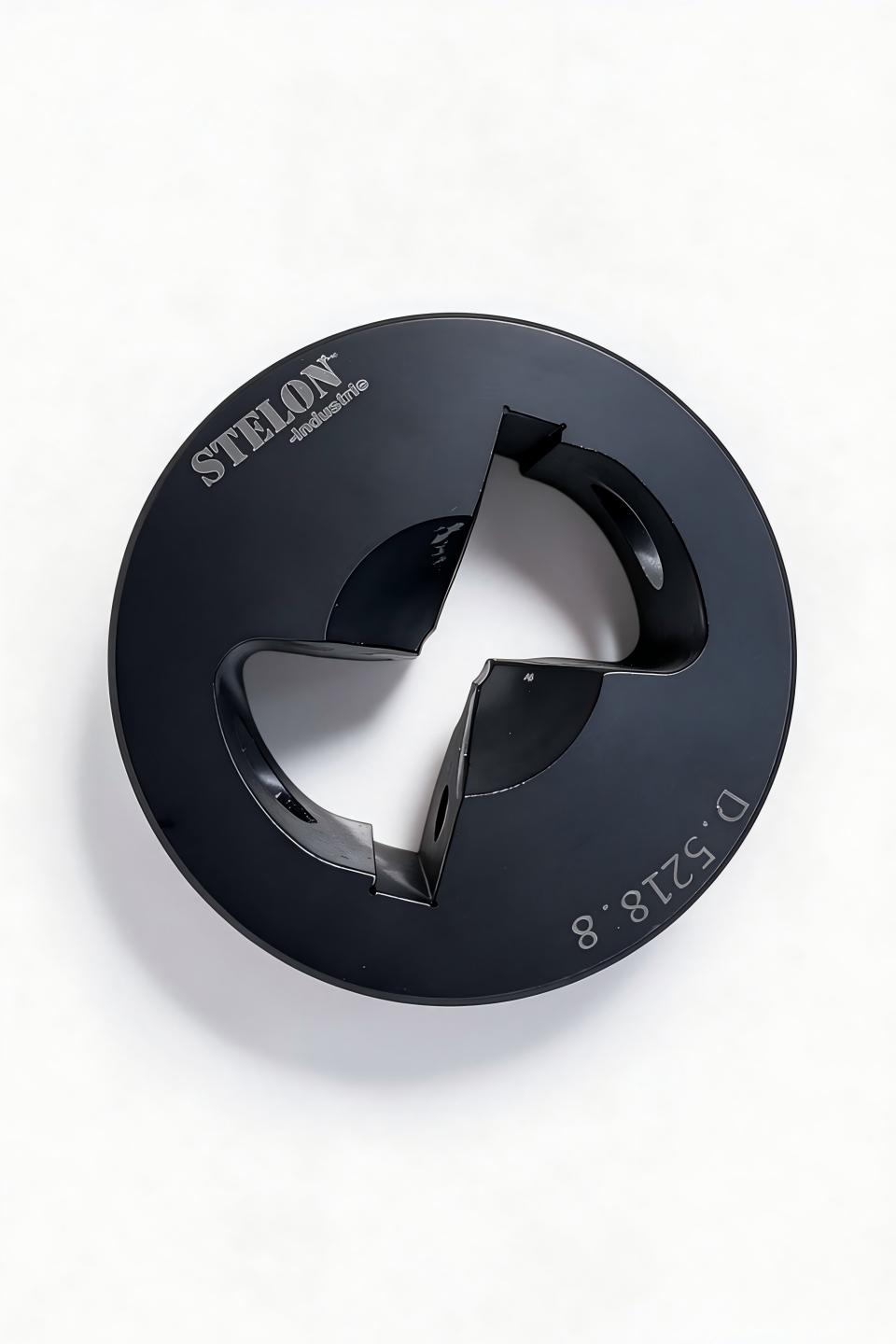

3.6 Double-Edge Dressing Cutter Holder

Home Components 3.6 Double-Edge Dressing Cutter Holder

3.6 Double-Edge Dressing Cutter Holder

D-Series

In response to the demand for high-precision and high-cycle electrode dressing, Stelon double-edge dressing cutter holder is specially designed for double-edge dressing blades. It adopts a symmetrical positioning and clamping structure to ensure balanced cutting force on both edges. During dressing, the electrode end face bears uniform force and is not prone to deflection, achieving higher end face flatness and coaxiality. The cutter holder adopts a high-strength base and precision machining technology, with excellent rigidity and vibration resistance, and can stably carry high-frequency dressing loads. It is the core supporting component of high-precision dressing units in automated welding workshops.

Components

Description

Symmetrical Double-Edge Clamping · High-Precision Coaxial Dressing · Adapted to High-Cycle Welding Production





Core Advantages

  • Symmetrical clamping structure for smoother dressed end faces
  • Adopting a double-edge symmetrical positioning design, the cutting force is balanced. There is no eccentric load on the electrode end face during dressing, which effectively improves end face flatness and coaxiality, reduces weld defects and improves welding quality.
  • High-rigidity base for vibration and deformation resistance
  • The cutter holder base is made of high-strength material and hardened, with strong structural rigidity and excellent vibration resistance. It is not prone to deformation and vibration under high-frequency dressing conditions, and maintains stable dressing accuracy for a long time.
  • Precision positioning reference for high clamping repeatability
  • The positioning surfaces are precision ground, and the blade clamping has high repeat positioning accuracy. No repeated debugging is required after blade replacement, with good dressing consistency, which meets the demand of mass stable production.
  • Modular design for convenient maintenance and replacement
  • Adopting a modular clamping structure, blades and wearing parts can be replaced quickly and easily, with simple maintenance operations, effectively shortening equipment downtime and improving production line availability.
  • Standardized adaptation compatible with mainstream equipment
  • Adopting industry-general mounting interfaces, it is compatible with various stationary dressers, robotic dressing units and integrated dressing & cap changing equipment, with strong compatibility and convenient upgrade and replacement.

Application Scenarios

– High-cycle automotive body-in-white (BIW) welding production lines

– Robotic dressing workstations with high precision requirements

– Integrated automatic dressing & cap changing units

– Spot welding dressing stations for core auto parts

– Automated welding workshops with strict requirements on welding quality



Product Value

With the core advantages of “high-precision symmetrical dressing, high-rigidity stable carrying and low maintenance cost”, Stelon double-edge dressing cutter holder provides an accurate and reliable blade carrying solution for the double-edge dressing process, helping customers achieve higher-quality electrode end face trimming, and improve the operational stability and product quality of automated welding production lines.
