2.2 Automatic Cap Changer Magazine

In the automatic electrode cap changing process of resistance spot welding, the magazine (electrode cap storage) is the core unit that carries spare electrode caps and realizes orderly delivery and accurate feeding, which directly determines the continuous operation capacity and operational stability of the cap changing station. Stelon automatic cap changer magazine adheres to British-style precision manufacturing philosophy, designed for high-cycle and long-time continuous operation conditions in automated welding workshops. Adopting high-quality profiles and precision assembly technology with a built-in spring pushing structure, it can store and output electrode caps stably and orderly. Cooperating with the cap changer main unit, it realizes efficient automatic cap changing, and is widely compatible with various stationary and robot-integrated automatic cap changing equipment.

Components, Featured Products

Description

Large-Capacity Storage · Smooth Feeding · Stable Feeding Support for Automatic Cap Changing Process

Core Performance Advantages

Large-capacity cap storage design to reduce refilling frequency
Adopting a long-stroke chamber structure, it can hold multiple standard electrode caps, greatly improving the storage capacity of a single magazine. It effectively reduces manual refilling frequency, extends the continuous operation time of equipment, and fully meets the operation requirements of high-cycle automated welding production lines.
Constant-force spring pushing for smooth and accurate feeding
Built-in constant-force spring pushing mechanism ensures uniform force and stable movement of electrode caps during delivery, without jamming, offset or overlapping. It ensures accurate alignment and feeding for each cap change, and guarantees the success rate and consistency of cap changing actions.
Transparent hollow chamber for intuitive material level visualization

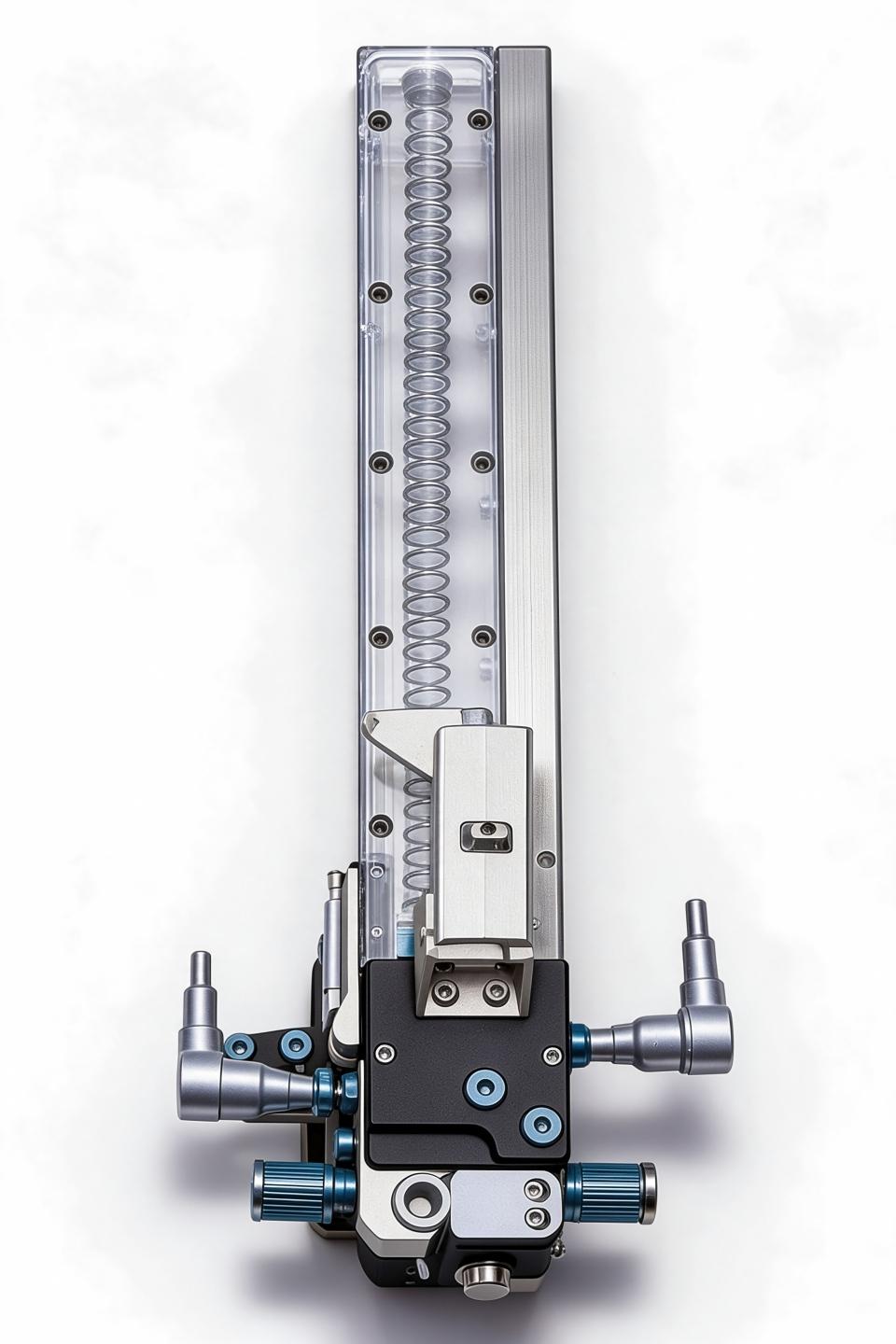

The chamber adopts a transparent hollow design, allowing intuitive observation of the remaining quantity and delivery status of internal electrode caps. It facilitates on-site personnel to refill materials and check working conditions in time, and quickly grasp material level information without disassembly, improving operation and maintenance efficiency.
High-strength wear-resistant base for harsh working conditions
The main body is made of high-strength wear-resistant material, with impact resistance and wear resistance. The inner wall of the chamber is smoothed, resulting in low feeding resistance and low loss. It can operate stably for a long time under complex working conditions with dust and oil in welding workshops, with a long service life.
Modular standard interface for wide compatibility
Adopting industry-general standard mounting interfaces, it can be directly compatible with mainstream brands of automatic cap changer main units and integrated dressing & cap changing equipment. It is easy to assemble and disassemble, requires no additional modification for replacement and upgrade, and can be seamlessly integrated into existing welding production lines.
Full specification compatibility and customized solutions support
Compatible with various common specifications of electrode caps such as φ12, φ13 and φ16. Customized solutions for capacity, interface and installation method are available according to customer’s cap changing cycle, station space, welding gun model and electrode type.

Application Scenarios

– Automatic cap changing stations for automotive body-in-white (BIW) welding

– Robot-integrated dressing & cap changing workstations

– Stationary automatic electrode cap changers

– Integrated dressing & cap changing machines

– Automated spot welding production lines for auto parts

Product Value

With the core values of “stable feeding, visual management, durability and high efficiency”, Stelon automatic cap changer magazine provides a reliable storage and feeding solution for the automatic electrode cap changing process, helping customers improve the continuous operation capacity of cap changing stations, reduce manual maintenance frequency, and enable welding production lines to achieve more efficient and more stable automated operation.
